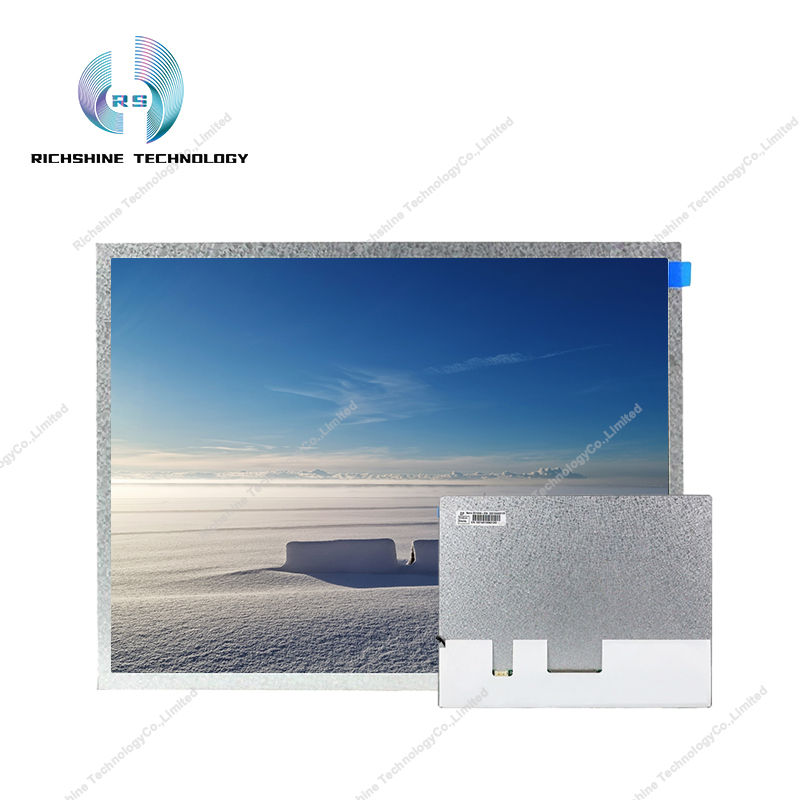

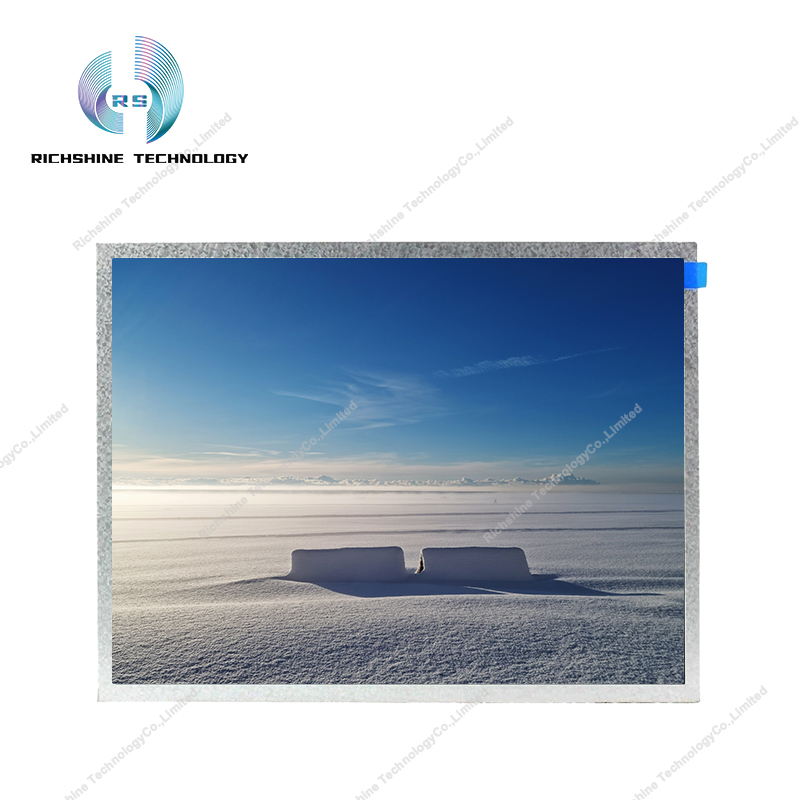

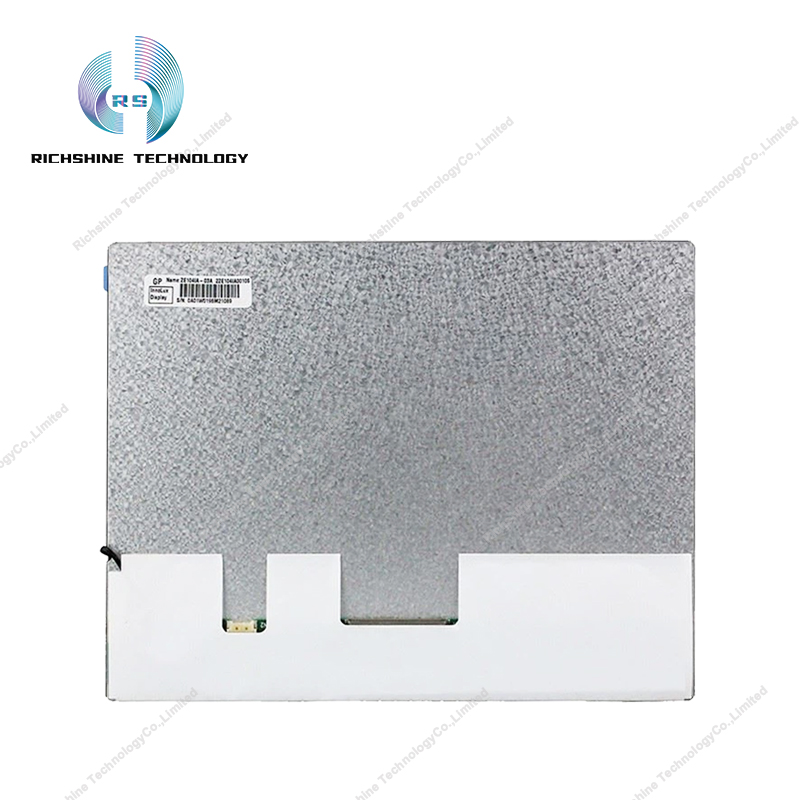

ZE104IA-03A 10.4 inch XGA IPS

Brand: Innolux

Model: ZE104IA-03A

Panel Type:a-Si TFT-LCD

Panel structure:FOB

panel size: 10.4"

Pixels H X V: 1024*768

Display Color: 262K/16.7M

Vertical Frequency: 60Hz

Response Time:25 ms

Signal voltage:3.3V

Interface Type: LVDS

View Angle:80/80/80/80

Color Space:NTSC 60%

Brightness: 0cd/m²

Contrast Ratio:1000:1

Power Dissipation: -

Backlight voltage: 12±1.0V

Backlight Life Time:-

Physical size : 200.53(H)×168.02(V)×1.04(D) mm

T-con board:-

Touch: No

Weight: 100.000 g

Temperature Range:Operating Temp.:-30 °C ~ 80 °C ; Storage Temp.:-30°C ~ 80 °C

Model:: ZE104IA-03A

ZE104IA-03A - Related Model

Model	Version	PDF
ZE104IA-03A	Final Ver1.1

ZE104IA-03A is a 10.4 inch a-Si TFT-LCD LCD glass product introduced by Innolux. It has no backlight, including LED driver backlight driver, no touch.The working temperature of this product is -30 ~ 80 ° C, and the storage temperature is -30 ~ 80 ° C. Its typical features are: wide temperature, including LED drive, 6 / 8 gray scale optional. This model is used in digital photo frames, portable DVD and other products. This product has 2 source + 1 gate chips for driver IC.The ZE104IA-03A display has a resolution of 1024 (RGB) × 768 (XGA) and an aspect ratio of 4: 3 (width: height). The pixels are arranged in RGB vertical strips.It has a display area dimension of 210.432 (wide) × 157.824 (high) mm, a cosmetic dimension of 220.53 (wide) x 16802 (high) × 1.44 (thick) mm, with a surface treatment of Hard coating, a net product weight of 100 g (Typ.) and a glass substrate of 0.40 + 0.40 mm.This product has no backlight, including LED driver. The ZE104IA-03A uses an LVDS (1ch, 8-bit) signal interface with a total of 30 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.

ZE104IA-03A Category :: Laptop panel
