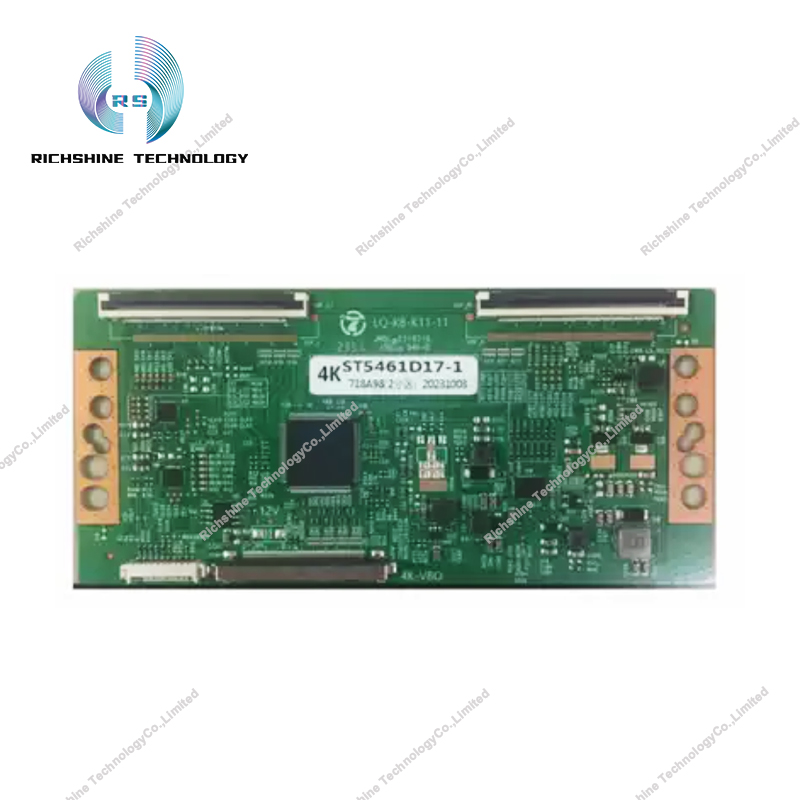

ST5461D17-1 55 inch UHD HVA
- Model:
- ST5461D17-1
ST5461D17-1 - Related Model
| Model | Version | |
|---|---|---|
| ST5461D17-1 | Ver1.1 |
The ST5461D17-1 is a 55-inch liquid crystal glass product developed by Shenzhen Xinghua Optoelectronics Technology Co., Ltd. (CSOT), featuring a-Si TFT-LCD technology. It lacks a backlight and touch functionality, with 4 source chips driving ICs integrated. The display has a resolution of 3840 (RGB) × 2160 (UHD), a 16:9 aspect ratio (width: height), and RGB vertical stripe pixel arrangement. Its display area dimensions are 1206.14 × 679.428 mm (width × height), and its physical dimensions are 1221.55 × 694.875 × 1.3 mm (width × height × thickness). The surface treatment is matte (Haze 2%), hard coating (3H). The product weighs 2.60 kg (max.). It utilizes a glass substrate with a thickness of 0.50 + 0.50 mm. This product does not have a backlight. The ST5461D17–1 employs a V-by-One 8-lane signal interface with a total of 51 pins, using terminal connections, and has a driving voltage of 12.0V (typical). Its typical vertical refresh rate (Fv) is 60 Hz. It operates within a temperature range of 0 to 50°C for operation and -20 to 60°C for storage. Given its 10-bit gray scale and matte surface features, this model is recommended for use in televisions.
- ST5461D17-1 Category :
- Monitor Panel
