R208RFE-L05 20.8 inch QXGA IPS
- Model:
- R208RFE-L05
R208RFE-L05 - Related Model
| Model | Version | |
|---|---|---|
| R208RFE-L05 |

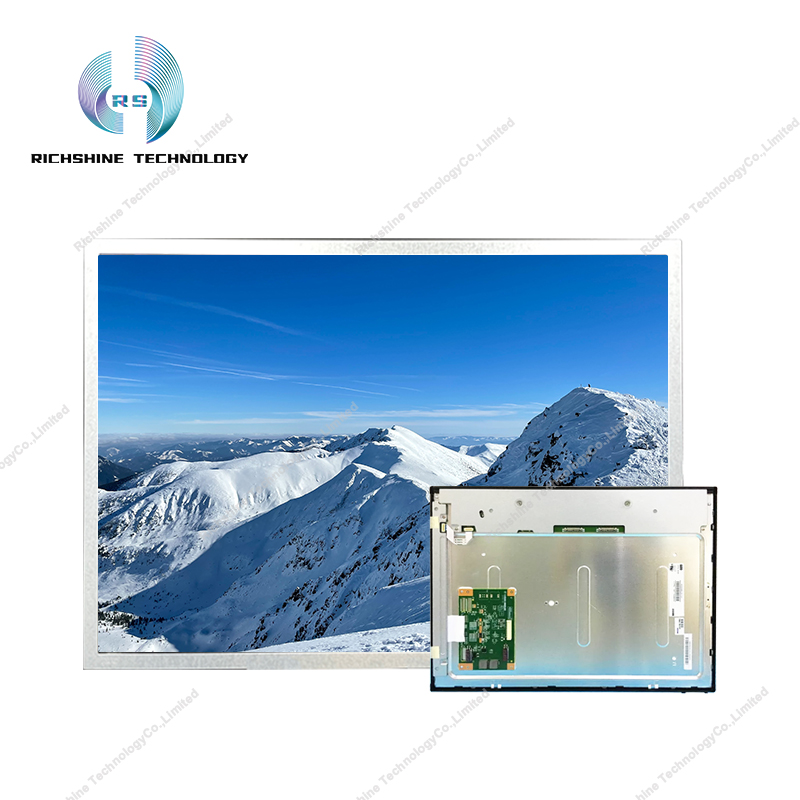

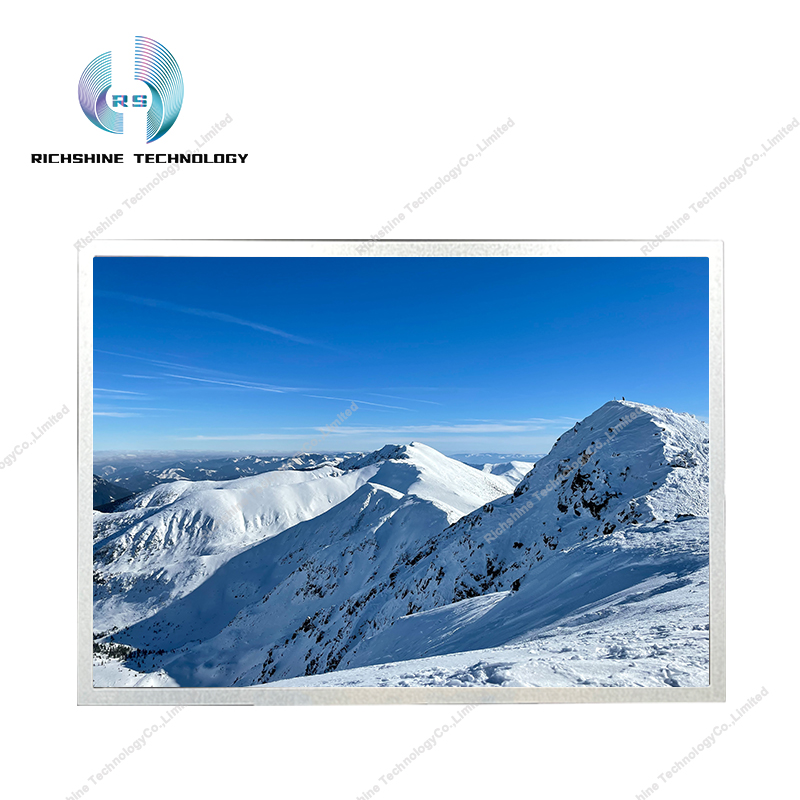

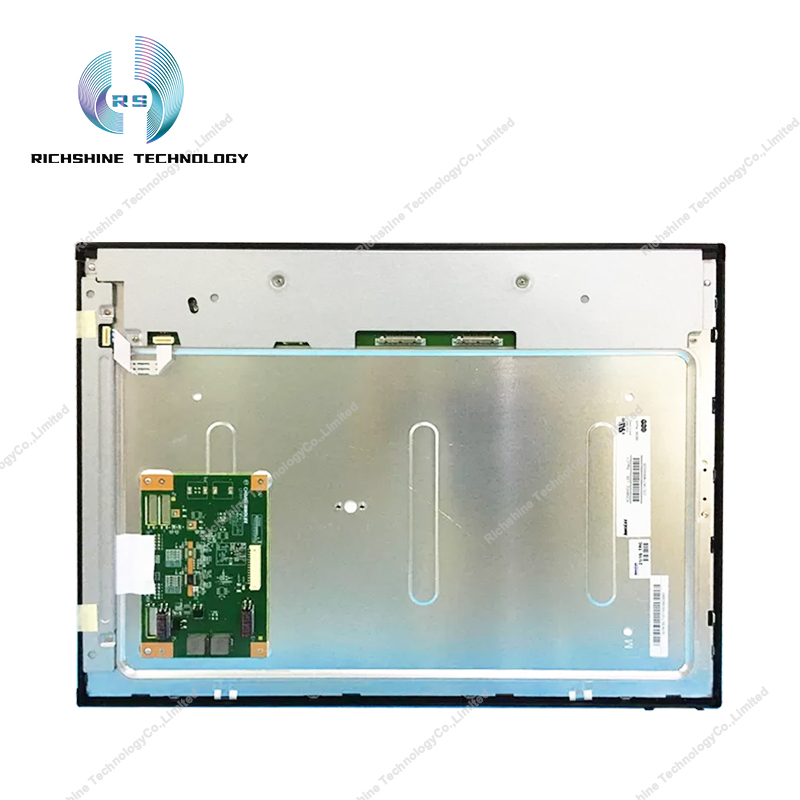

The R208RFE-L05 is a 20.8-inch a-Si TFT-LCD LCD module product launched by Innolux. It features WLED backlighting and is non-touch. The operating temperature range is 0 to 50°C, and the storage temperature range is -20 to 60°C. Its key characteristics include extremely high brightness, white LED backlight, a lifespan of over 50,000 hours, a matte surface finish, and a Clear Base. This model is used in products such as medical imaging. The display resolution of the R208RFEL05 is 2048 (LCR) × 1536 (QXGA), with a 4:3 (width: height) aspect ratio and LCRA vertical stripe pixel arrangement. The display area dimensions are 423.9 (width) × 318 (height) mm, with a matte surface finish and a hard coating (3H). In terms of backlighting, this product uses WLED illumination, with a light source lifespan of 50K hours. The R208RFERL05 employs an LVDS signal interface and is connected via terminals, with a driving voltage of 12.0V (typical). Its typical vertical refresh rate Fv is 60Hz.
- R208RFE-L05 Category :
- Monitor Panel
- Specification
