R190EFE-L51 19 inch SXGA IPS
- Model:
- R190EFE-L51
R190EFE-L51 - Related Model
| Model | Version | |
|---|---|---|
| R190EFE-L51 |

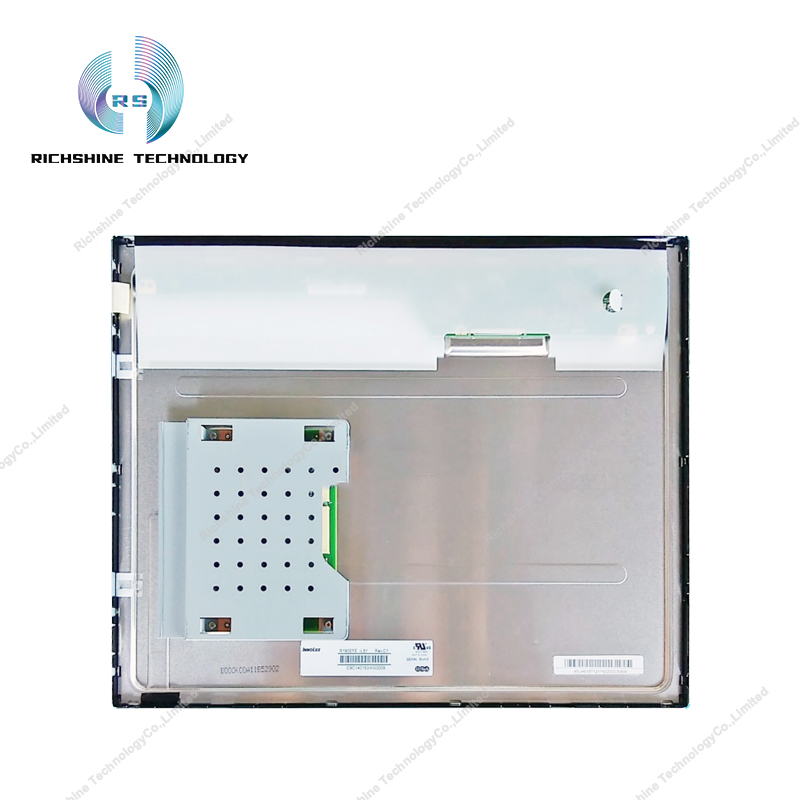

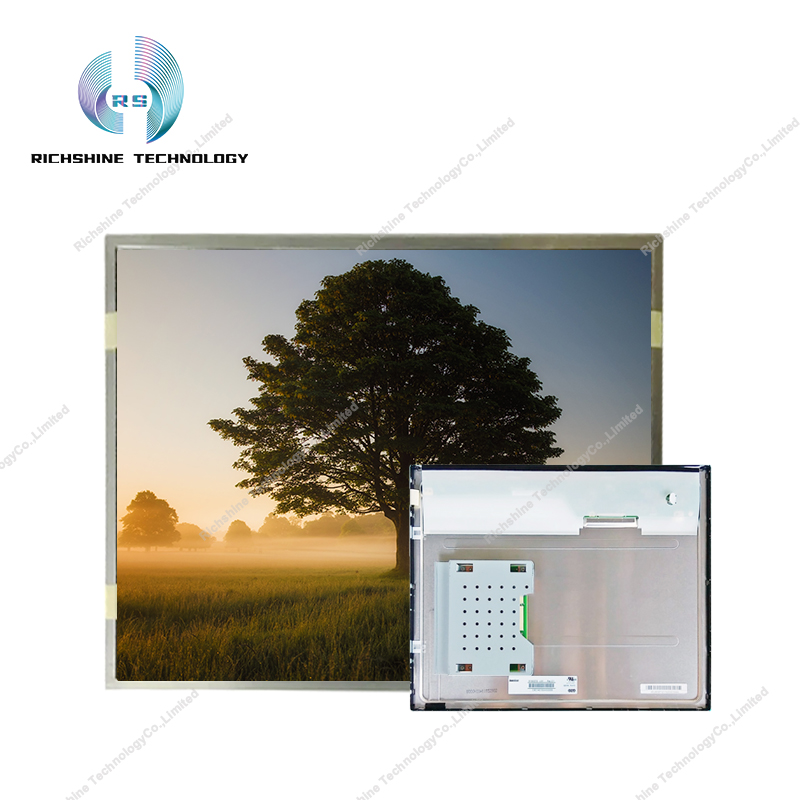

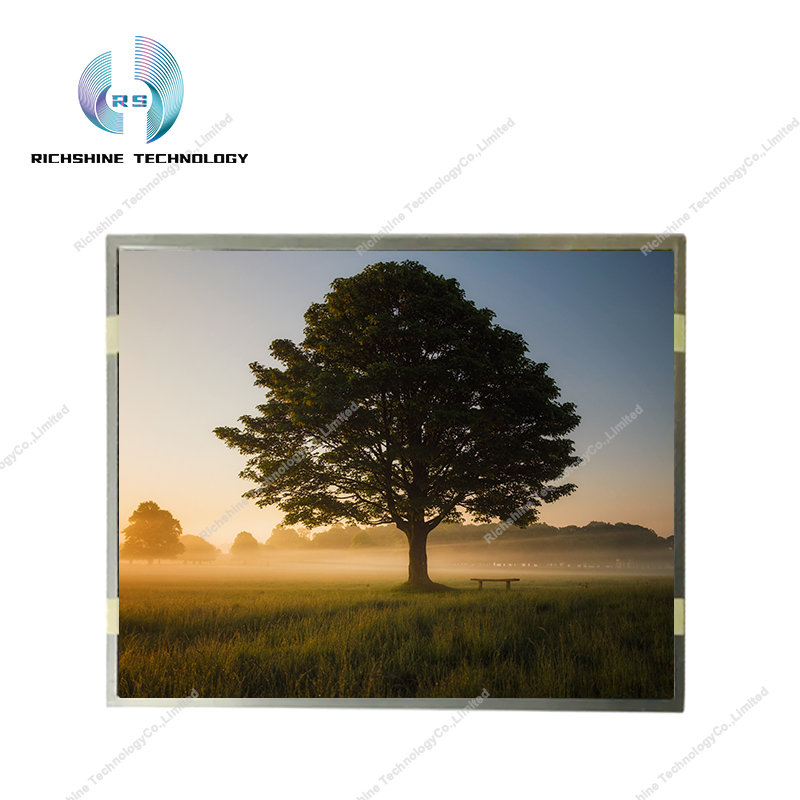

R190EFE-L51 is a 19.0 inch LCD module product using a-Si TFT-LCD technology introduced by Innolux. It is equipped with WLED backlight, including LED driver backlight driver, no touch. Its typical features are: ultra-high brightness, white LED backlight, life more than 50,000 hours, including LED drive, terminal formal, surface fog surface, Clear base.Its working temperature is 0 ~ 50 ° C, and its storage temperature is -20 ~ 60 ° C. This model is suitable for medical imaging.The R190EFE-L51 displays 1280 (LCR) × 1024 (SXGA) resolution with a 5: 4 aspect ratio (W: H), and pixels arranged in LCR vertical strips. It has a display area dimension of 376.32 × 301.056 (wide × high) mm, a viewing dimension of 380.3 × 305.0 (wide × tall) mm, an exterior dimension of 396 (wide) × 324 (high) × 26.1 (thick) mm, and a surface finish of fog (Haze 25%), Hard coating (3H), Net weight 1.98 ± 0.08 Kgs.The backlight aspect of this product uses a 4 strings WLED light source, the service life of the light source is 50K hours, including LED driver. The R190EFE-L51 uses an LVDS (2ch, 8-bit) signal interface, a total of 30 pins, with terminal connections, and a drive voltage of 12.0 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- R190EFE-L51 Category :
- Monitor Panel
- Specification
