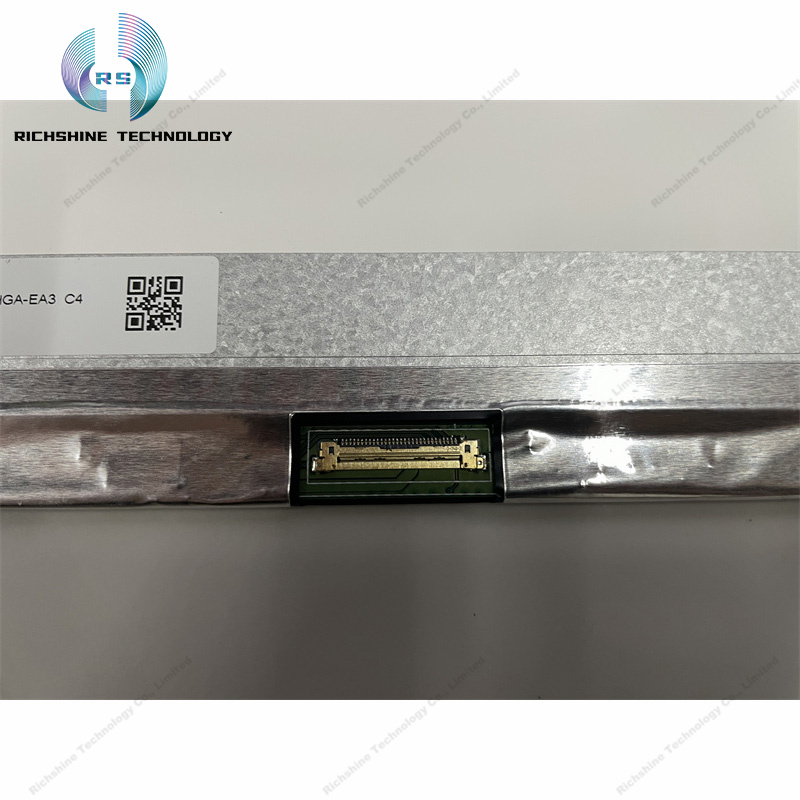

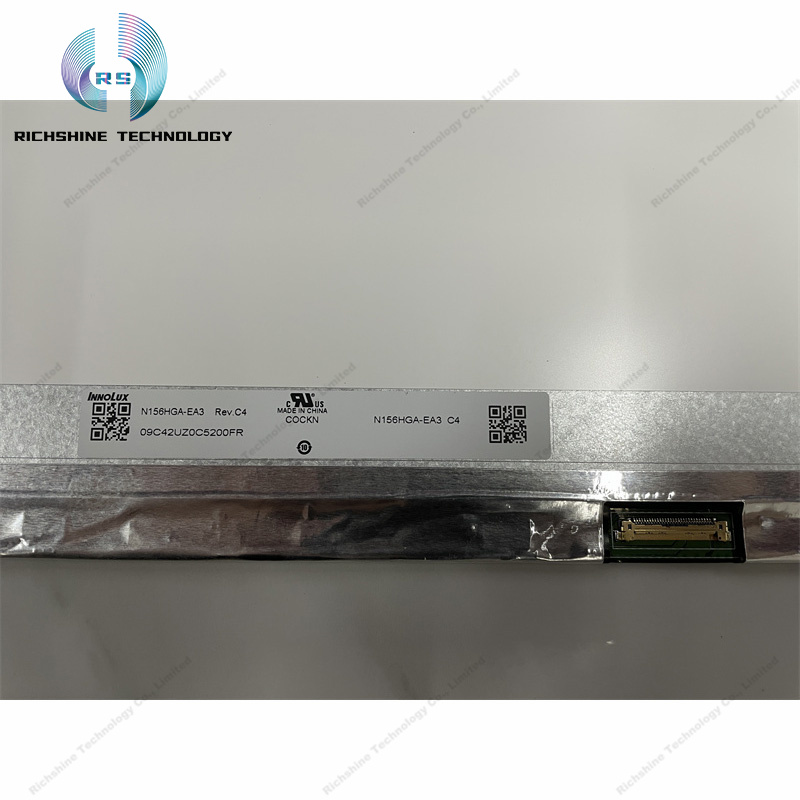

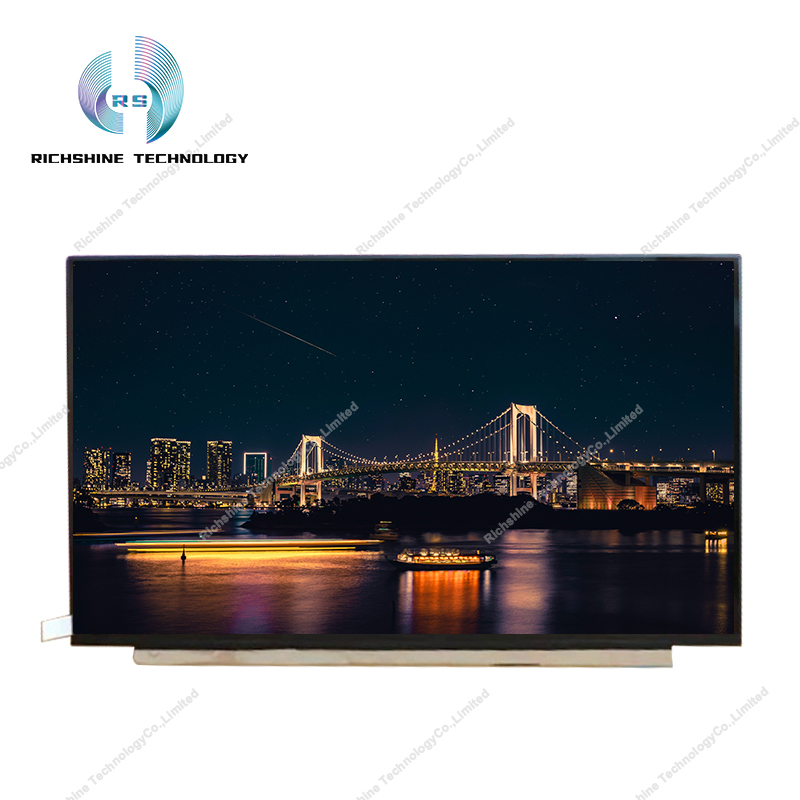

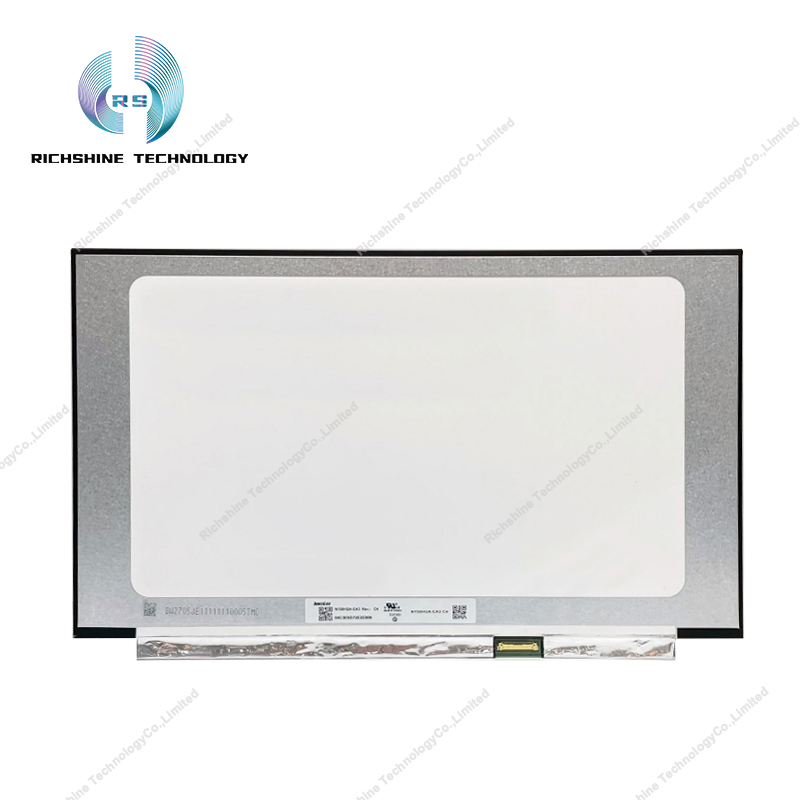

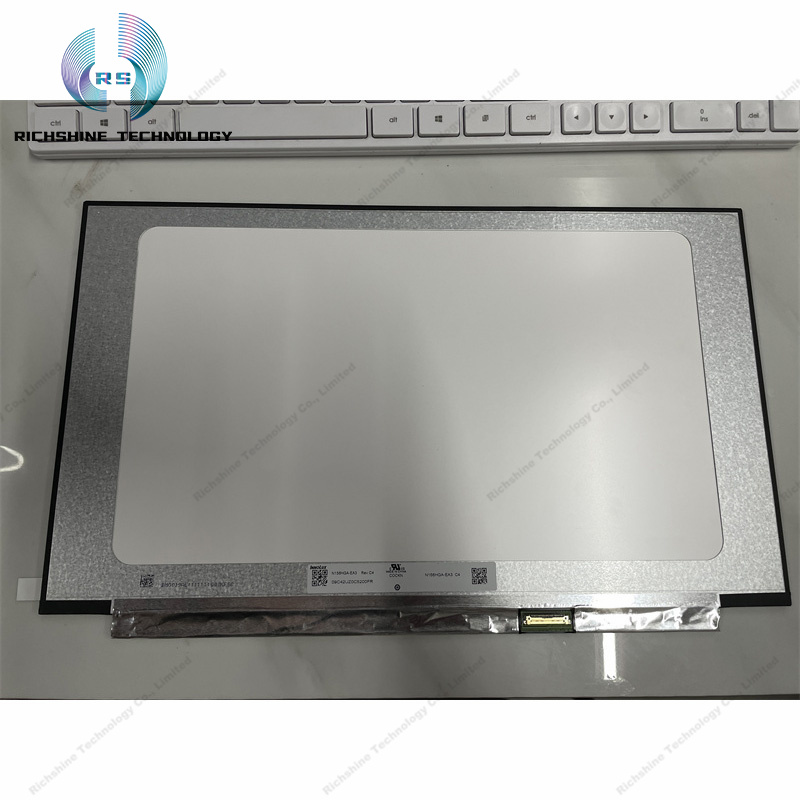

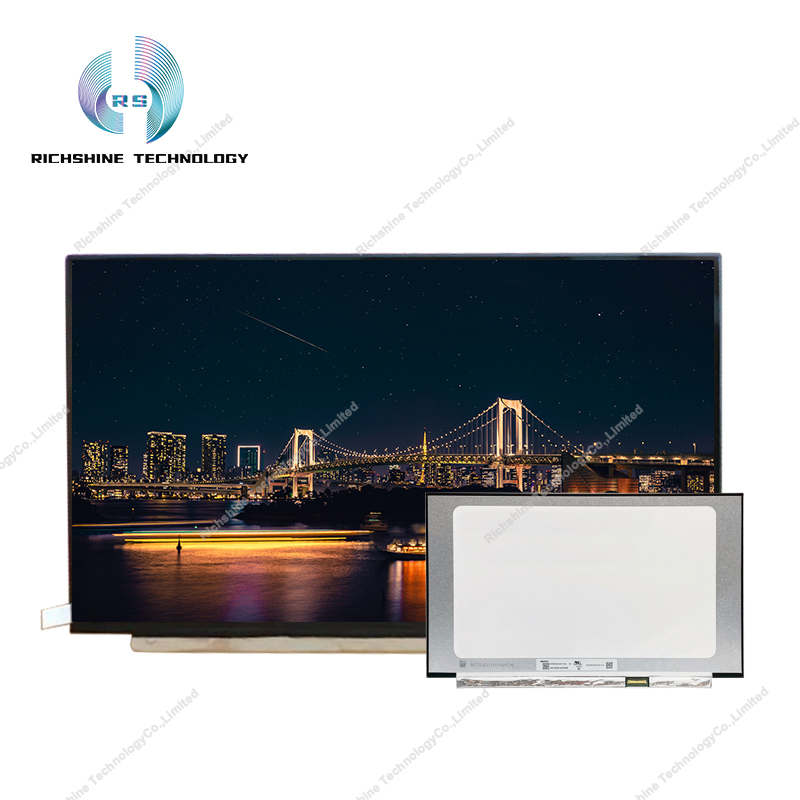

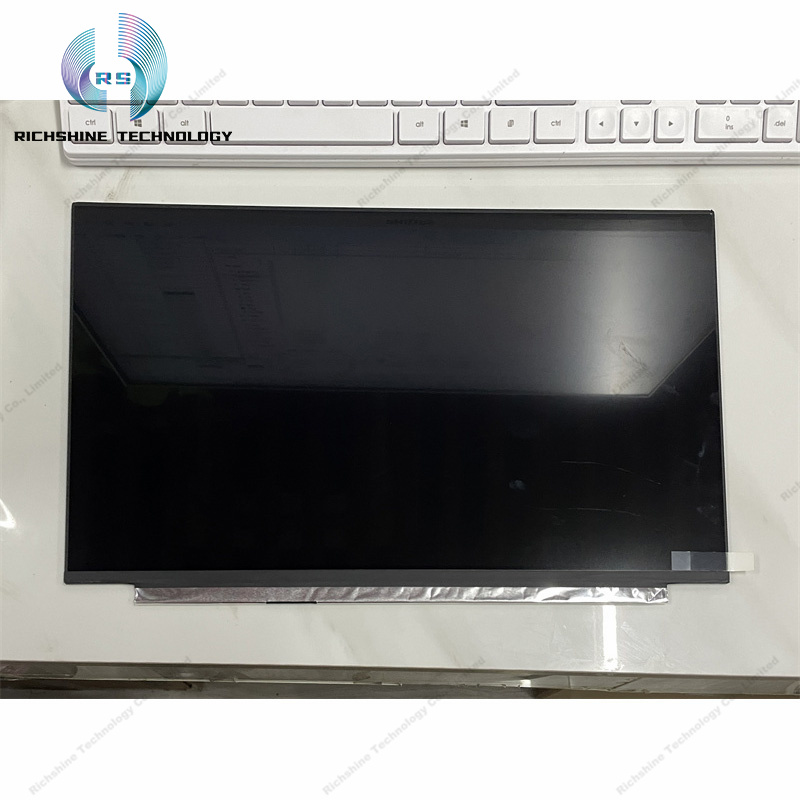

N156HGA-EA3 is a 15.6 inch a-Si TFT-LCD LCD module product introduced by Innolux, which is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2).Its typical features are: white LED backlight, including LED driver, terminal flip, surface fog surface,eDP1.2, Caution: Rev.C1 with up & down slugs, Rev.C2 Rev.C3 Rev.C4 w/o slug, HP P/N: M03151-JD1, Lenovo P/N: 5D10R41288。This model is used in products such as notebooks.The N156HGA-EA3 displays a resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16? 9 (W: H) and pixels arranged in RGB vertical strips.Its display area size is 344.16 (wide) × 193.59 (high) mm, and its appearance size is 350.66 (wide) × 216.25 (high) × 3.2 (thick) mm,Surface treatment for fog surface, Hard coating (3H), product net weight 360 g (Max.) appearance style for thin screen (PCBA straight, thickness ≤ 3.2mm).Backlight aspects of this product uses 10S4P WLED light-emitting side light source, the service life of the light source is 15K hours, including LED driver. The N156HGA-EA3 features an eDP (2Lanes) signal interface with a total of 30 pins, terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
