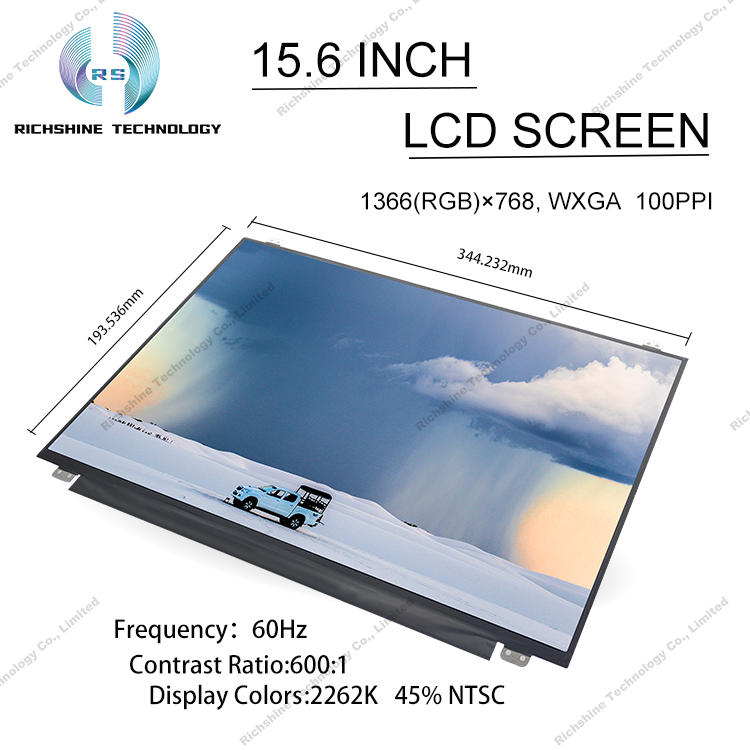

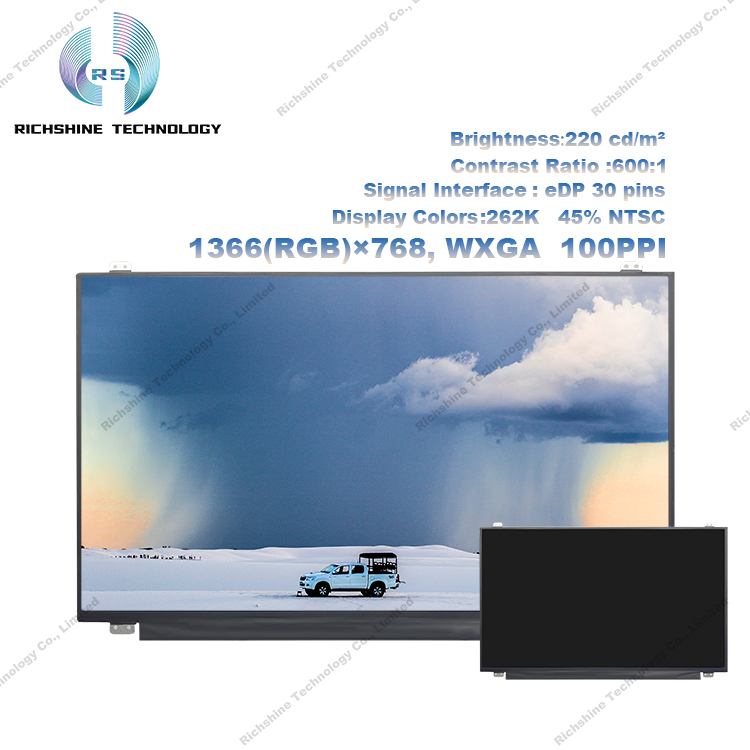

N156BGA-EA2 (product code: CMN15DB) is a 15.6 inch a-Si TFT-LCD LCD module product introduced by Innolux, which is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is 0 ~ 50 ° C, and the storage temperature is -20 ~ 60 ° C. Its typical features are: white LED backlight, including LED driver, terminal flip, surface fog surface, eDP1.2, successor model of N156BGE-EA2.It has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 169 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 344.232 (wide) x 193.536 (high) mm, and its exterior size is 359.5 (wide) x 223.8 (high) x 3.2 (thick) mm,The visible size is 347.36 (wide) × 96.84 (high) mm, the surface treatment is fog face, Hard coating (3H), the net weight of the product is 345 / 360 g (Typ. / Max.) The appearance style is thin screen (PBA flat, thickness ≤ 3.2mm).Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The N156BGA-EA2 features an eDP (1 Lane) signal interface with a total of 30 pins, terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz. This model is used in products such as notebooks.
