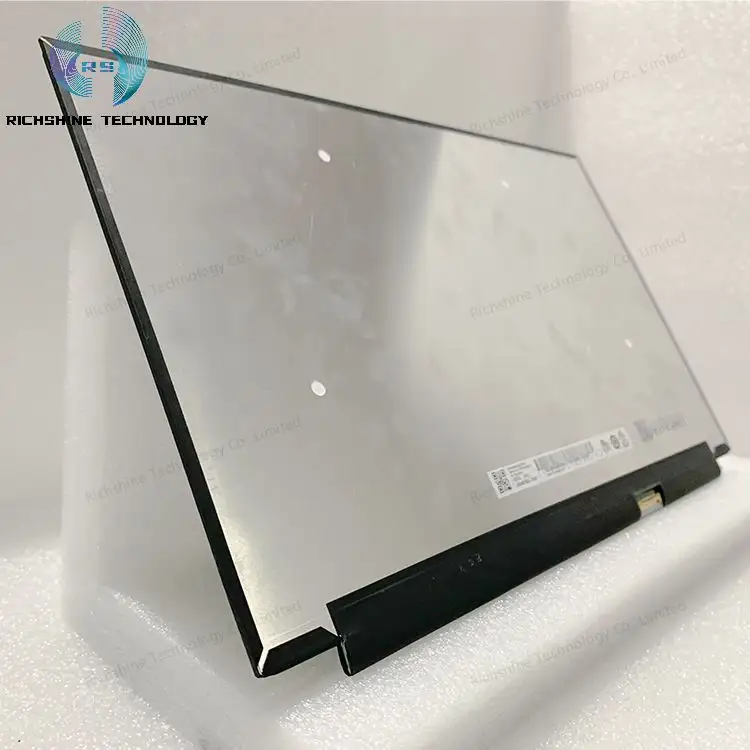

N133DSE-GP1 is a 13.3-inch liquid crystal module using a-Si TFT-LCD technology by Innolux, Inc., which is fitted with a WLED backlight, LED-powered backlight drive, and touchless.The N133DSE-GP1 displays a resolution of 3840 (RGB) × 2160 (UHD) and an aspect ratio of 169 (width: height). The pixels are arranged in RGB vertical strips and the pixel density is 332 PPI. Its display area size is 293.76 × 165.24 (width × height) mm, the appearance size is 299.46 × 186.67 (width × height) × 2 (thickness) mm, and the surface is treated as mirror. Haze 0%), Hard coating (3H), Product net weight 151 / 160 g (Typ. / Max.) Appearance style is thin screen (PCBA straight, thickness ≤ 3.2mm). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The N133DSE-GP1 features an eDP (4 Lanes) signal interface, 40 pins in total, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is 0 ~ 50 ° C, storage temperature is -20 ~ 60 ° C, and vibration resistance is 1.5G (14.7m / s2).Based on its sRGB, white LED backlight, including LED driver, terminal flip, surface mirror and other features, this model is recommended for use in notebooks.
