MNG007DA1-M 16 inch WQXGA FFS
- Model:
- MNG007DA1-M
MNG007DA1-M - Related Model
| Model | Version | |
|---|---|---|
| MNG007DA1-M |

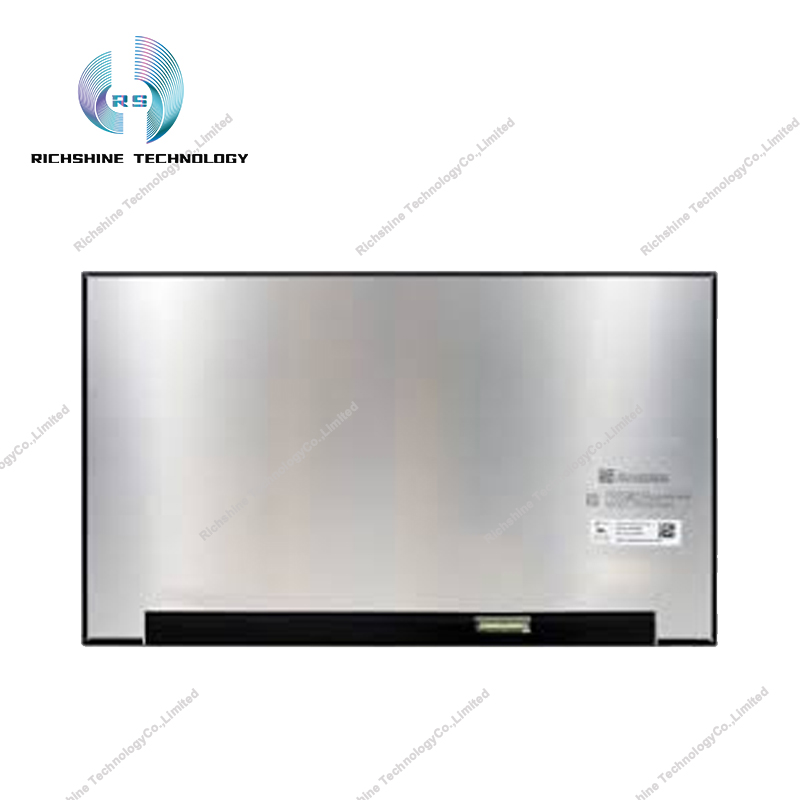

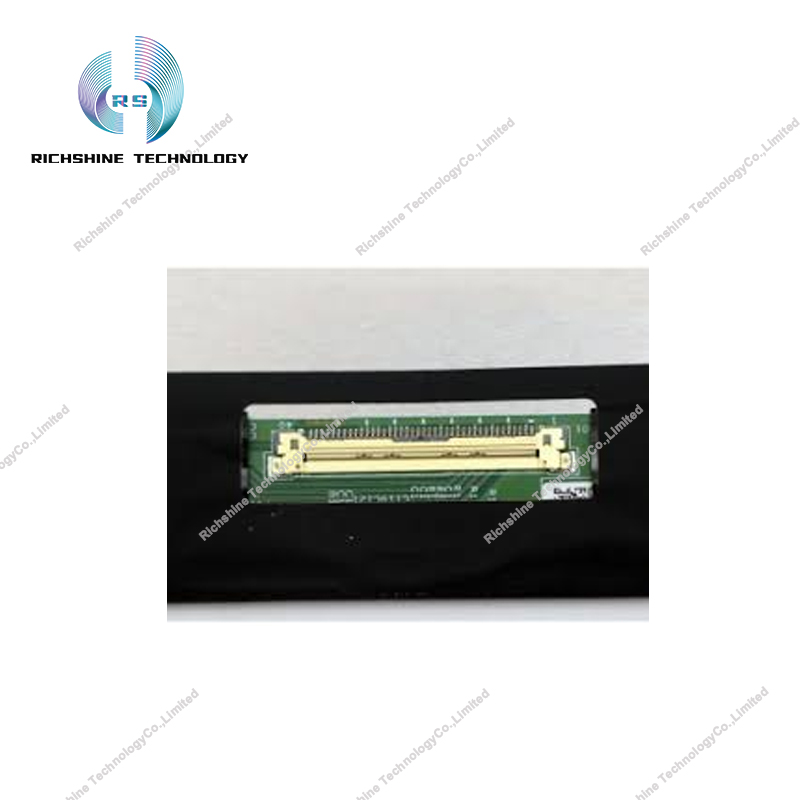

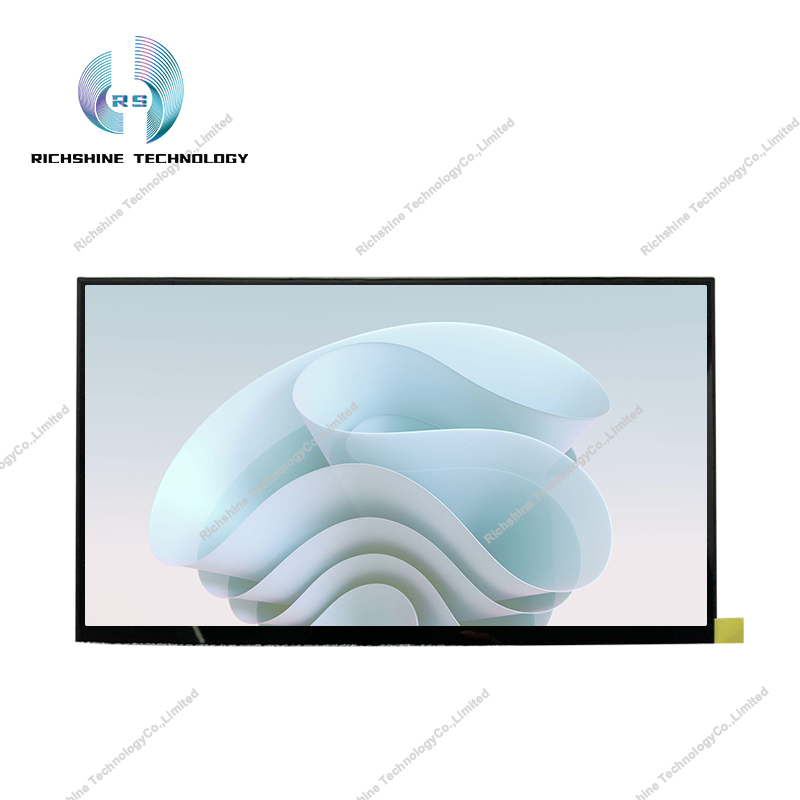

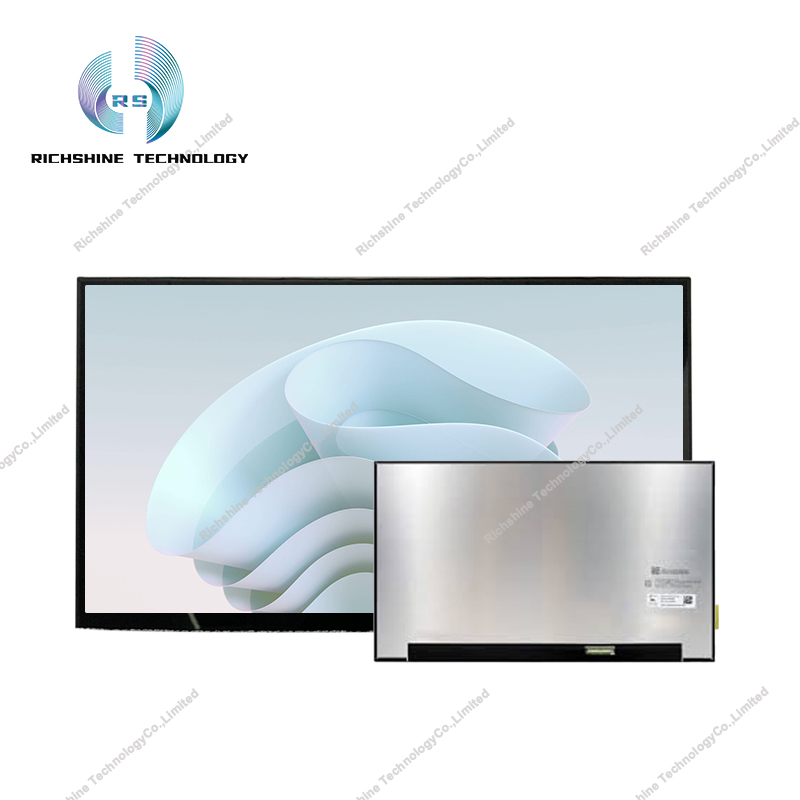

The MNG007DA1-M is a 16.0-inch LCD module product from CSOT (Huaxing Optoelectronics) featuring LTPS TFT-LCD technology. It is equipped with WLED backlighting and is non-touch. Its typical characteristics include: 165Hz, white light LED backlight. Its operating temperature range is 0 to 50°C, and its storage temperature range is -20 to 60°C. This model is suitable for use in laptops. The MNG007DA1–M has a display resolution of 2560 (RGB) × 1600 (WQXGA) with a 16:10 (width: height) aspect ratio and RGB vertical stripe pixel arrangement. The display area dimensions are 344.678 × 215.424 (width × height) mm. The backlight for this product uses WLED-lit side-illuminated light sources. The MNG007D-A1 employs an eDP signal interface and is connected via terminals. Its typical vertical refresh rate Fv is 165Hz.
- MNG007DA1-M Category :
- Laptop panel
