M140NWHE R2 14.0 inch IPS
- Model:
- M140NWHE R2
M140NWHE R2 - Related Model
| Model | Version | |
|---|---|---|
| M140NWHE R2 |

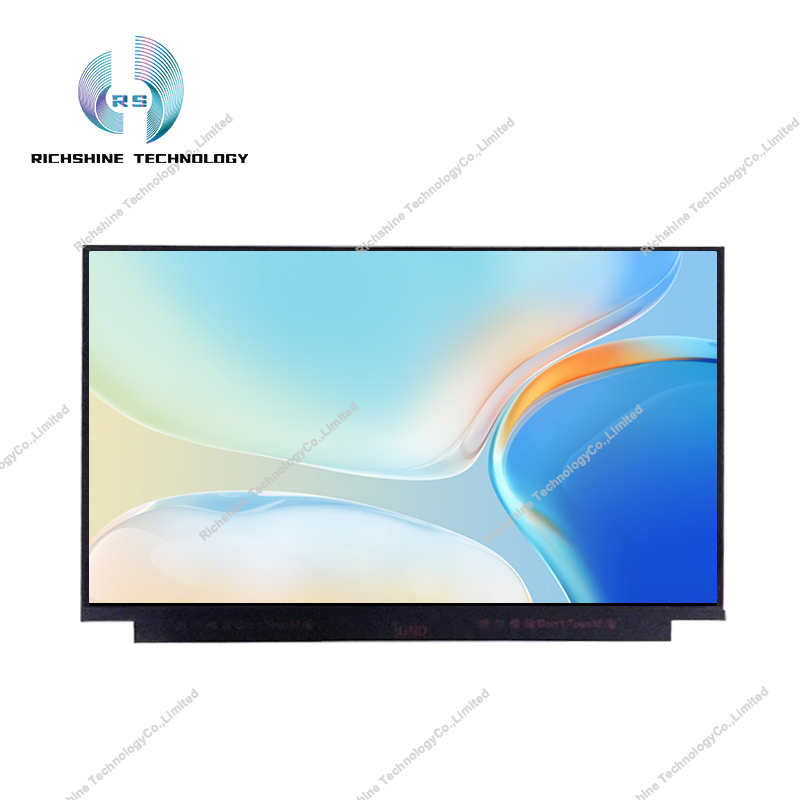

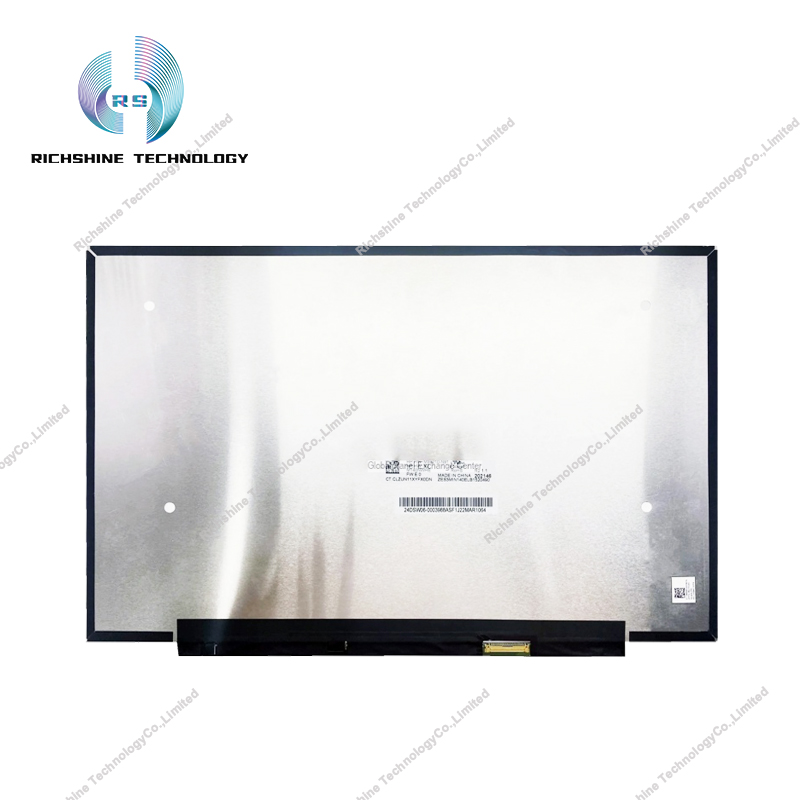

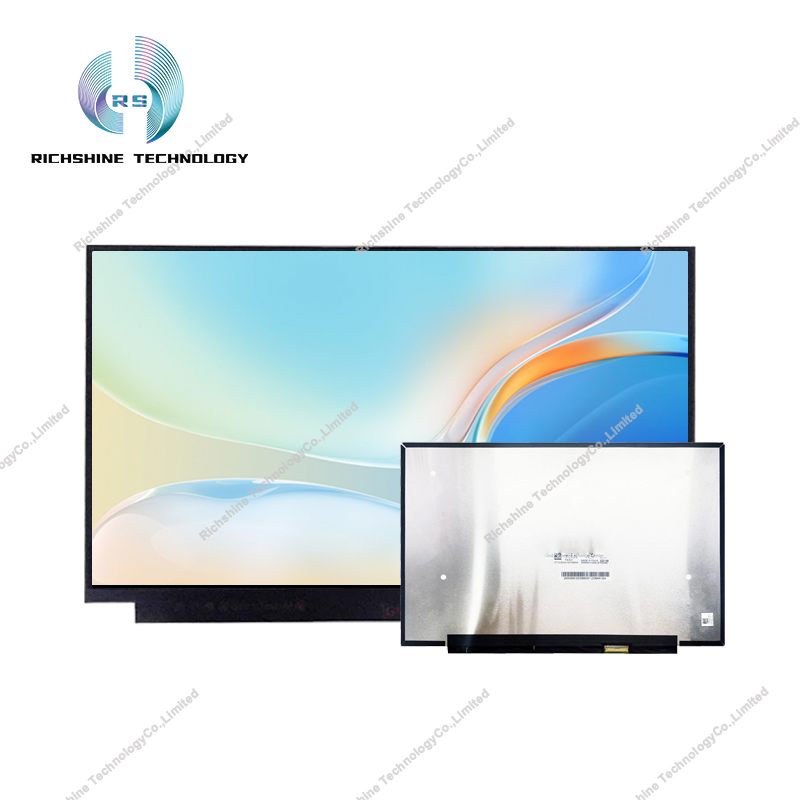

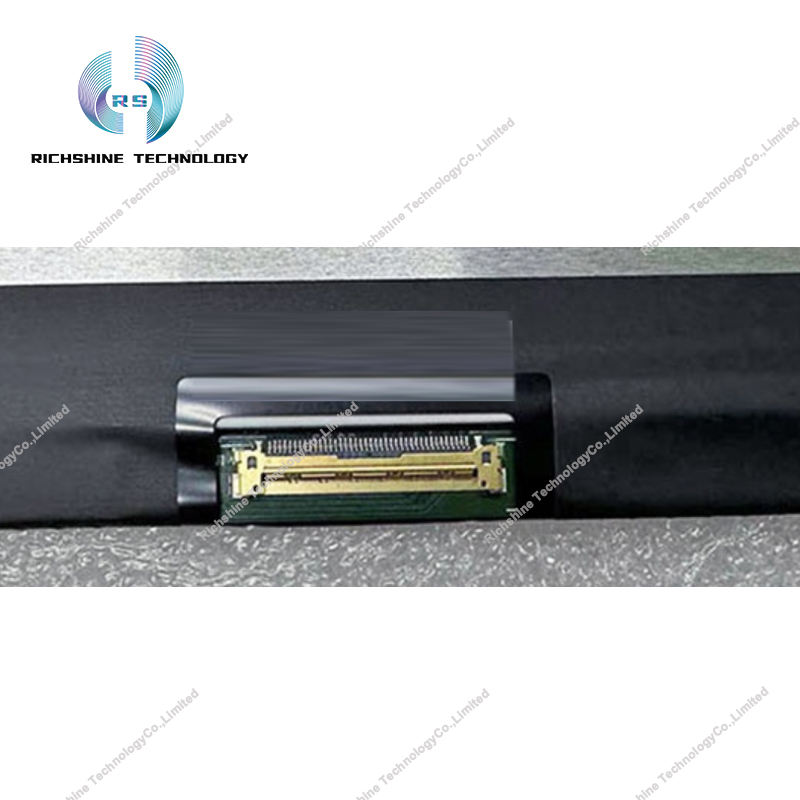

The M140NWHE R2 is a 14.0-inch LCD module product from Long Teng (IVO) featuring a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlighting, and is non-touch. Its typical features include: white light LED backlighting with an LED driver, reverse-mounted terminals. Its operating temperature range is 0 to 50°C, storage temperature range is -20 to 60°C, and it is resistant to vibrations with a vibration tolerance of 1.5G (14.7 m/s²). This model is suitable for use in laptops. The M140NWRE R2 has a display resolution of 2240 (RGB) × 1400, a 16:10 (width: height) aspect ratio, and RGB vertical stripe-based pixel arrangement. Its display area dimensions are 301.55 × 188.47 (width × height) mm, and its physical dimensions are 306.55 (width) × 204.47 (height) × 2.8 (thickness) mm. The display style is thin (PCBA flat, thickness ≤3.2 mm). In terms of backlighting, this product uses WLED-lit side-illuminated light sources. The light source’s lifespan is 15K hours, and it includes an LED driver. The M140NWE R2 employs an eDP (4 lanes) signal interface with a total of 40 pins, using terminal connections, and has a driving voltage of 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz.
- M140NWHE R2 Category :
- Laptop panel
