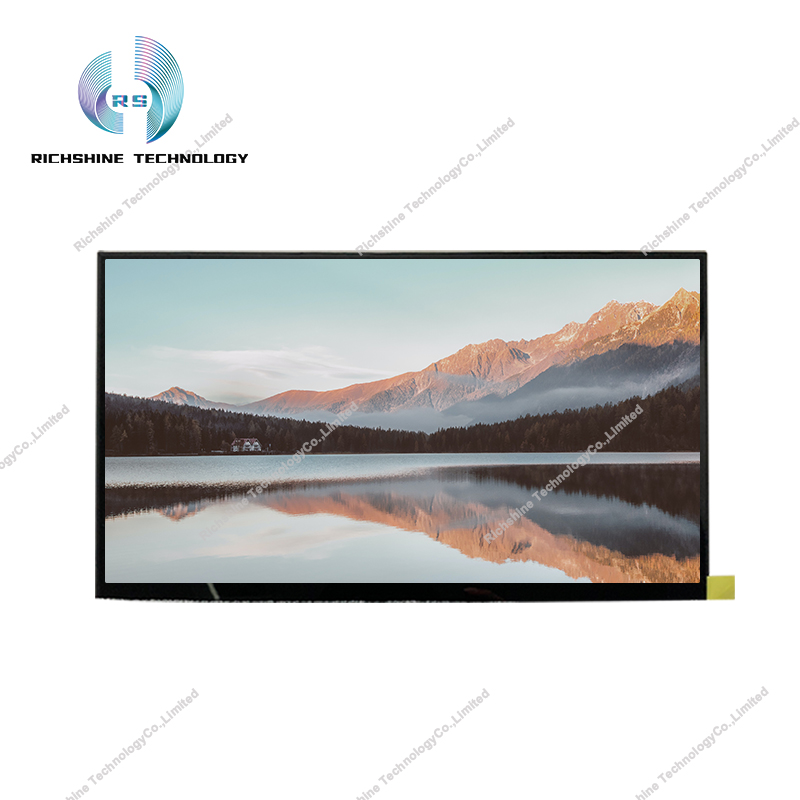

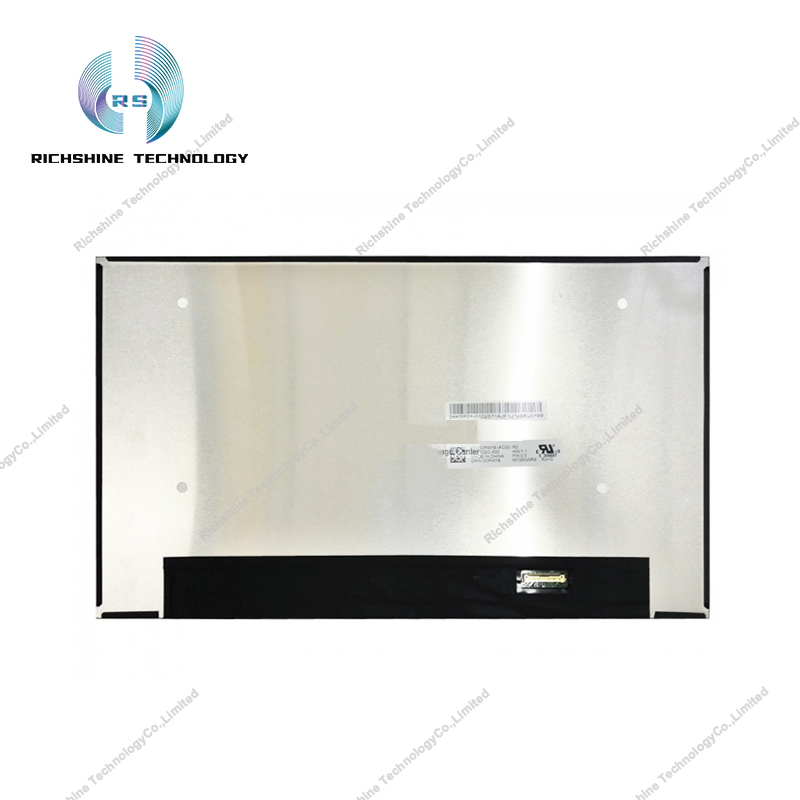

M133NWR9R0 (product code: IVO053B) is a 13.3 inch a-Si TFT-LCD liquid crystal module product introduced by Longteng (IVO), it is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: white LED backlight, including LED driver, terminal flip, surface fog surface, eDP1.2. This model is used in products such as notebooks.The M133NWR9 R0 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 293.827 (wide) x 165.197 (high) mm, and its exterior size is 300.26 (wide) x 177.55 (high) x 4.5 (thick) mm,Surface treatment for fog surface, Hard coating (3H), product net weight 220 g (max.) appearance style for thin screen (PCBA bending, thickness ≤ 3.0mm).Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The M133NWR9 R0 features an eDP (1 Lane) signal interface with a total of 30 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
