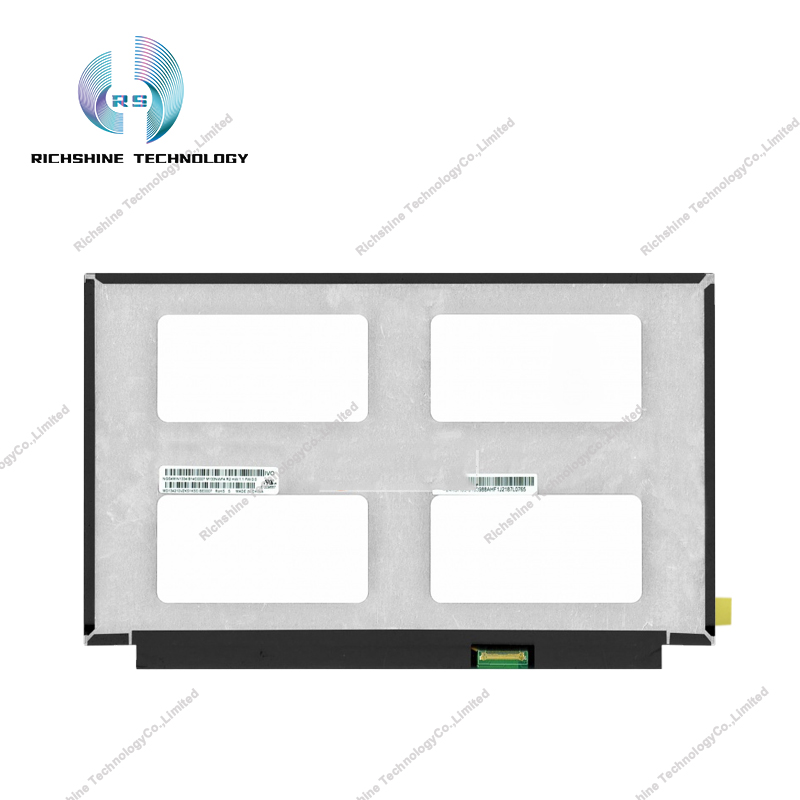

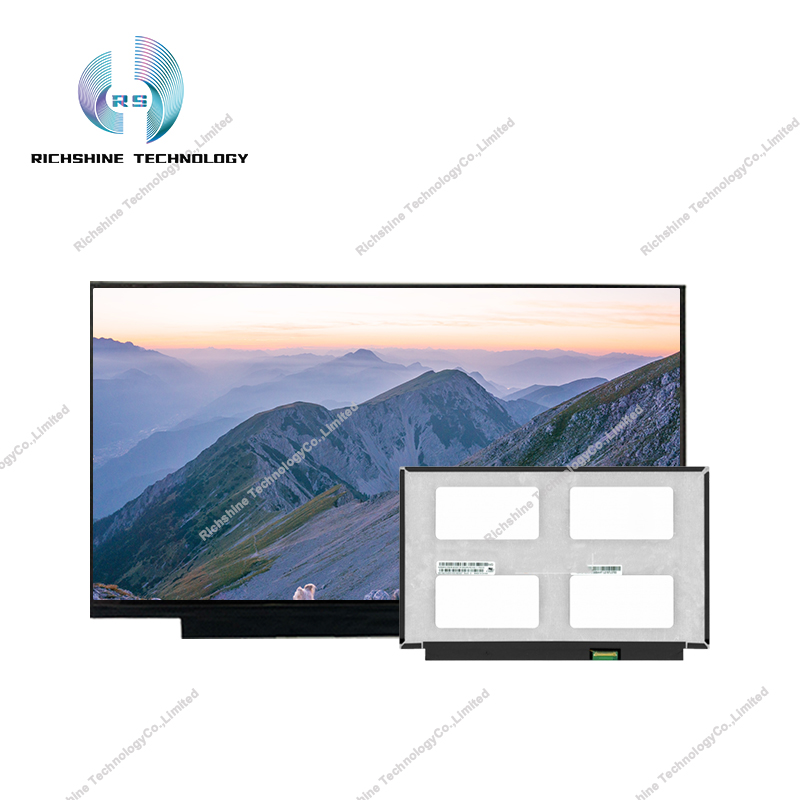

M133NWF4 R2) is a 13.3-inch liquid crystal module product introduced by Kunshan Longteng Optoelectronics Co. (Longteng, IVO) using a-Si TFT-LCD technology. It is fitted with WLED backlighting, LED-powered backlighting drive, and touchless.The M133NWF4 R2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16? 9 (W: H), and pixels are arranged in RGB vertical strips. Its display area size is 293.76 × 165.24 (width × height) mm, the appearance size is 300.26 × 188.75 (width × height) × 2.5 (thickness) mm, and the surface treatment is mirror ( Haze 0%), Hard coating (3H), Product net weight 215 g (Max.) Appearance style is thin screen (PCBA straight, thickness ≤ 3.2 mm). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The M133NWF4 R2 features an eDP (2Lanes) signal interface with a total of 30 pins, terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is 0 ~ 50 ° C, storage temperature is -20 ~ 60 ° C, and vibration resistance is 1.5G (14.7m / s2).Based on its white LED backlight, including LED driver, terminal flip, surface mirror, eDP1.2, DPN: 8F4J5 features, this model is recommended for use in notebooks.
