M123AWF4 R1 12.3 inch IPS
- Model:
- M123AWF4 R1
M123AWF4 R1 - Related Model
| Model | Version | |
|---|---|---|
| M123AWF4 R1 | Rev.01 |

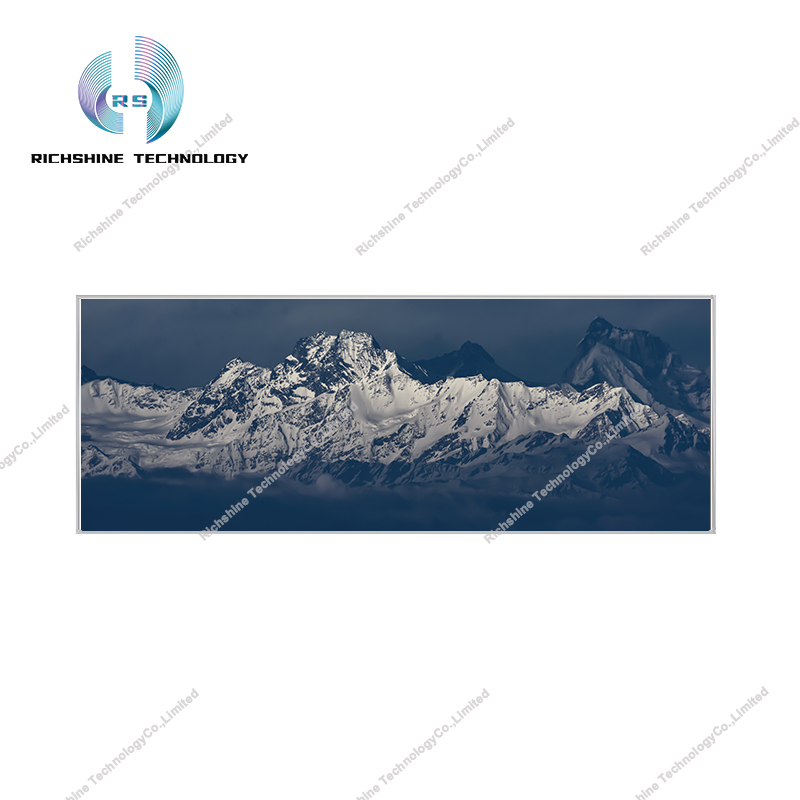

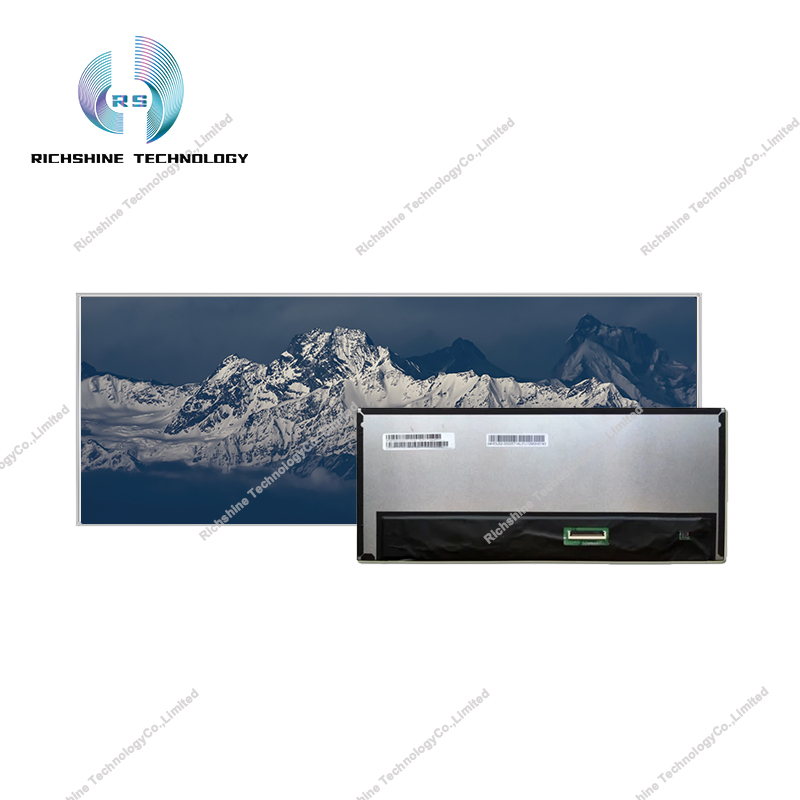

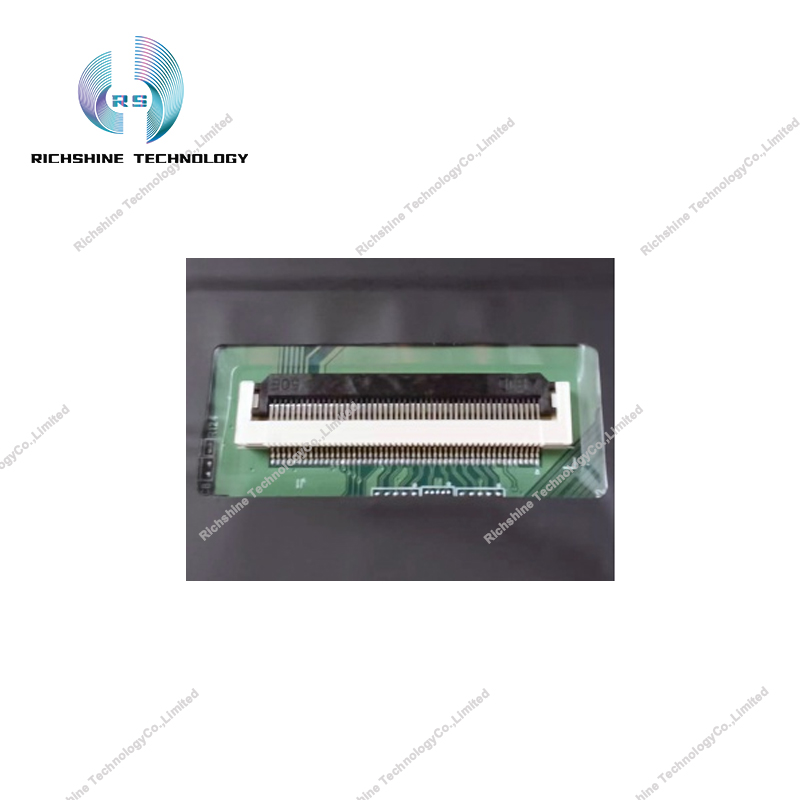

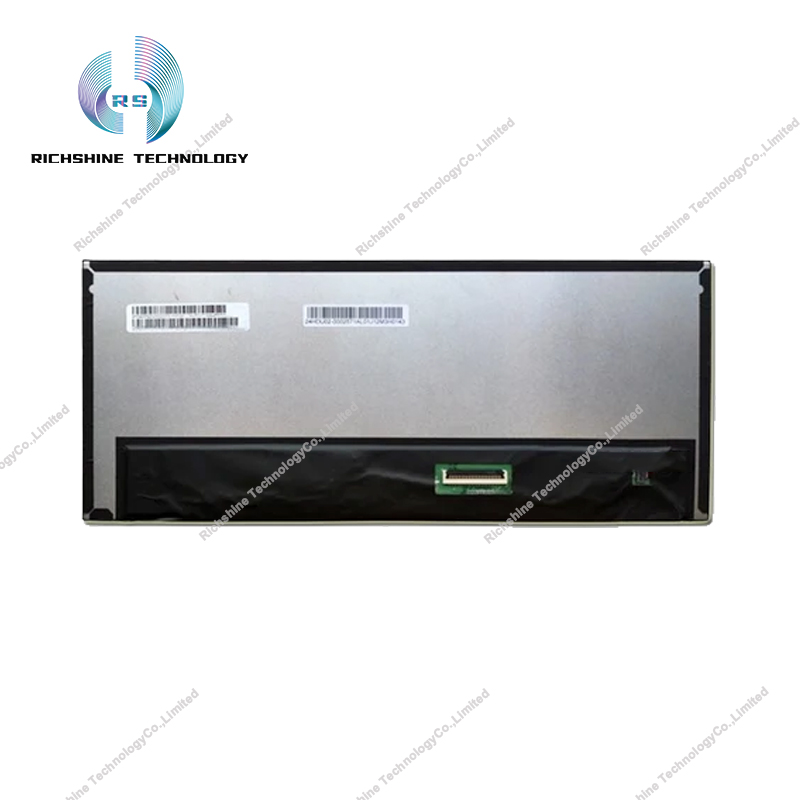

The M123AWF4 R1 is a 12.3-inch a-Si TFT-LCD LCD module from Dragon Teng (IVO). It is equipped with WLED backlight, no backlight driver, no touch.The working temperature of this product is -30 ~ 85 ° C, the storage temperature is -40 ~ 90 ° C, and the vibration resistance is 2.9 G (28.4 m / s2). Its typical features are: wide temperature, 3G seismic, ultra-high brightness, white LED backlight, ultra-wide screen. This model is used in outdoor brightening, automotive displays and other products., M123AWF4 R1 displays a resolution of 1920 (RGB) × 720, an aspect ratio of 8: 3 (width: height), pixels arranged in RGB vertical strips. It has a display area dimension of 292.032 (wide) × 109.52 (high) mm, a cosmetic dimension of 299 (wide)× 113.52 (high), × 8.02 (thick) mm, and a surface treatment of Hard coating (3H) with a net product weight of 349 / 380 g (Typ. / Max.).Backlight aspects of this product uses 10S4P WLED light-emitting side light source, the service life of the light source is 30K hours, without backlight drive. The M123AWF4 R1 features an LVDS (2ch, 8-bit) signal interface with a total of 50 pins, terminal connection, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- M123AWF4 R1 Category :
- Laptop panel
- Specification
