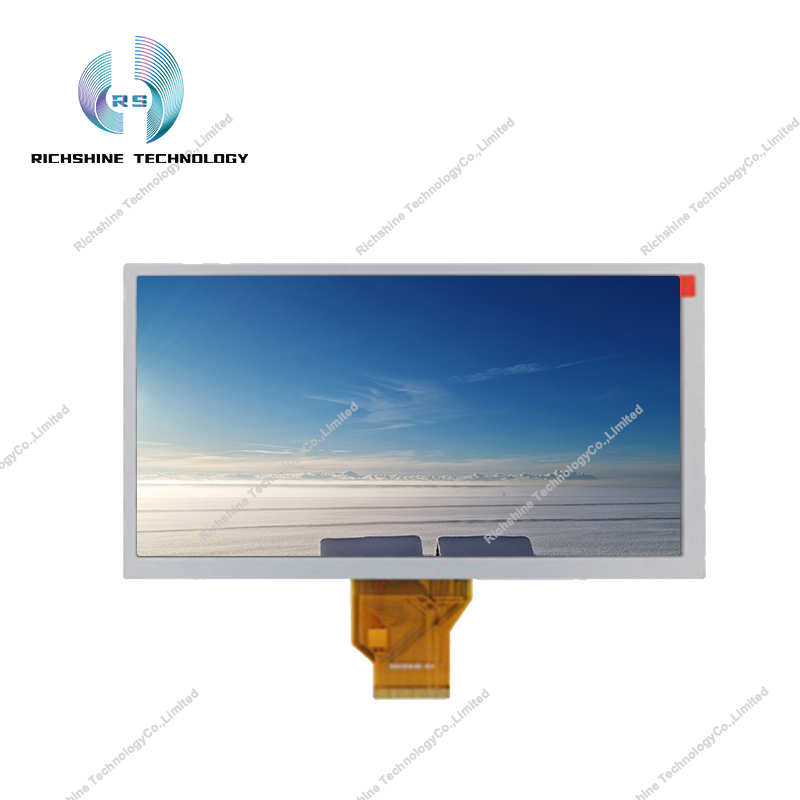

The M080AWP4 R3 is an 8.0-inch LCD module product featuring a-Si TFT-LCD technology. It is equipped with WLED backlighting, lacks a backlight driver, and does not have touch functionality. Its typical features include: wide temperature range, white LED backlight, top/bottom, left/right flip display, 6/8-bit grayscale options, matte surface finish. Its operating temperature range is -30 to 85°C, and its storage temperature range is -40 to 95°C. This model is suitable for use in vehicle displays. The M080 AWP4 R3 has a display resolution of 800 (RGB) × 480 (WVGA), a 16:9 (width: height) aspect ratio, and RGB vertical stripe pixel arrangement. Its display area dimensions are 176.64 × 99.36 (width × height) mm, and the visible area dimensions are 180.1 × 102.4 (width × height) mm. The physical dimensions are 192.8 (width) × 116.9 (height) × 6.7 (thickness) mm, with a matte finish and a hard coating (3H). The product weighs 222g (max.). In terms of backlighting, this model uses a 3S10P WLED side-illuminated light source. The light source’s lifespan is 30K hours, and it does not include a backlight driver. The M080AWP4R3 employs Parallel RGB (1 channel, 6/8-bit) signal interfaces, with a total of 60 pins, using FPC connections. The driving voltage for the screen is 3.3/12/18/-6V (typical) (VCC/AVDD/VGH/VGL). Its typical vertical refresh rate Fv is 60Hz.
