LP156WH4-TLA1 15.6inch WXGA
- Model:
- LP156WH4-TLA1
LP156WH4-TLA1 - Related Model
| Model | Version | |
|---|---|---|
| LP156WH4-TLA1 |

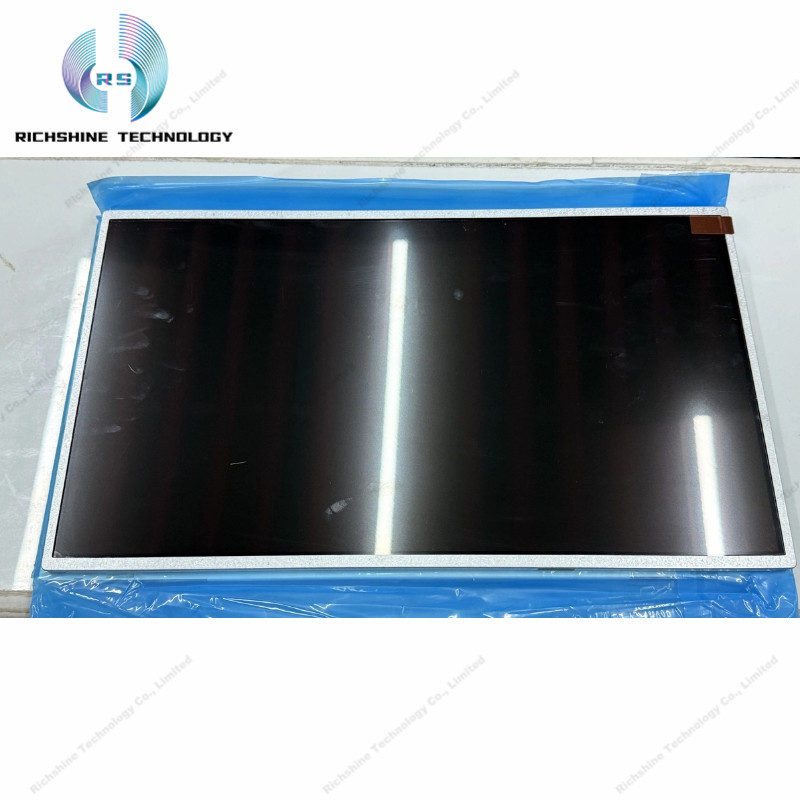

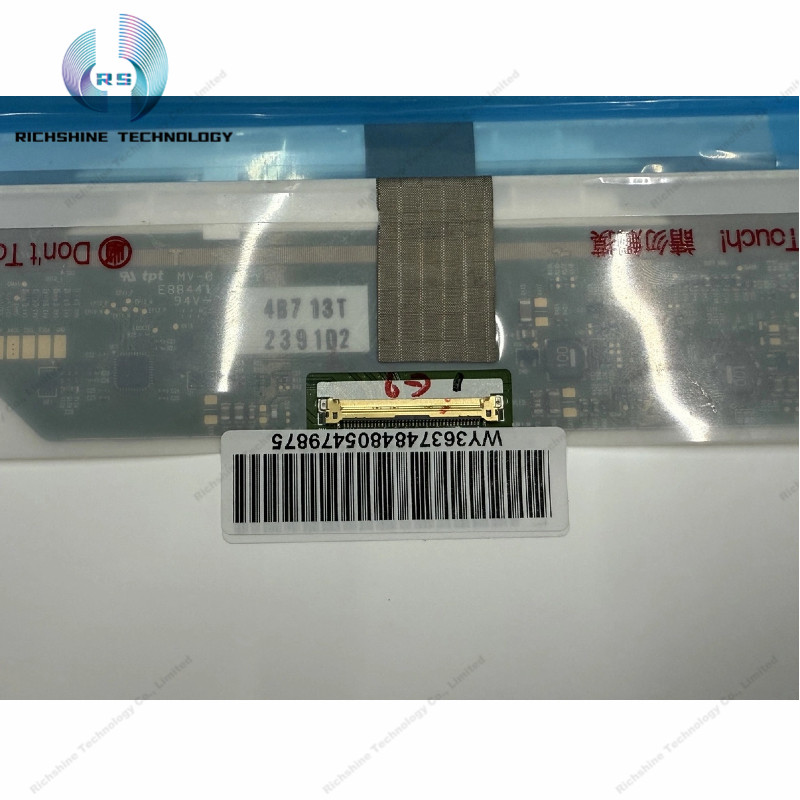

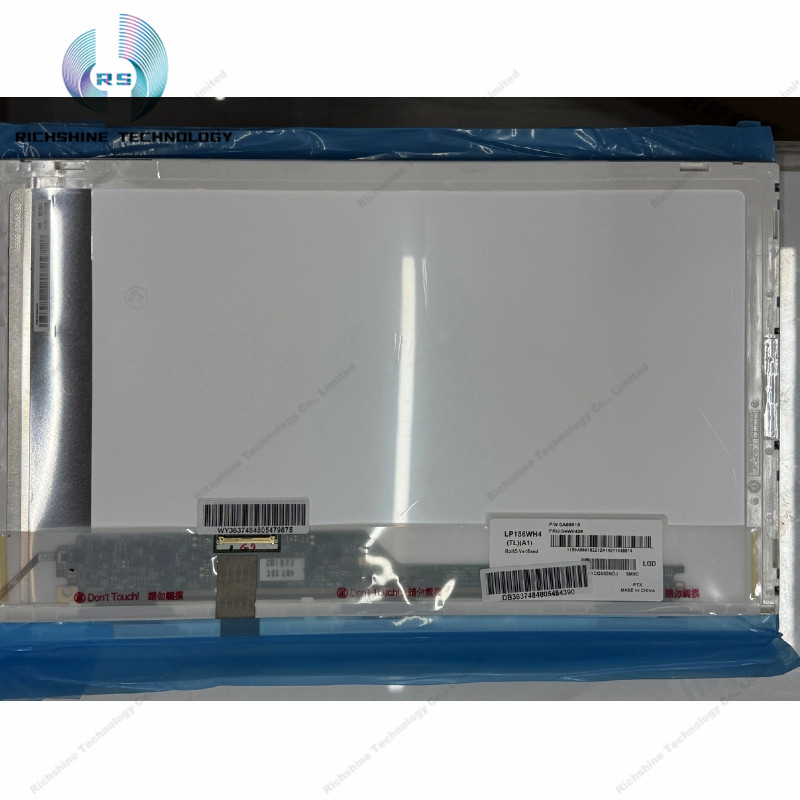

LP156WH4-TLA1This is a 15.6-inch LCD module product featuring A-Si TFT-LCD technology, equipped with WLED backlighting, including an LED driver for backlighting. It is non-touch. Its typical features are: white light LED backlighting with an LED driver, reverse-mounted terminals, mirror-finished surface. It is compatible with Lenovo V570/B570/G460e/G560e. Its operating temperature range is 0 to 50°C, and its storage temperature range is -20 to 60°C. As a TN, full-white display, transmissive LCD module product, the LP156WH4-TLA1 can provide a display brightness of 220 cd/m² and a transmittance contrast ratio of 400:1, with viewing angles of 40/40/10/30 (Min.) (CR ≥ 10) (L/R/U/D), with the best viewing angle being at 6 o’clock. Its response time is 16 (Typ.) (Tr + Td) ms. Due to the use of 6-bit gray-scale signals per pixel, this product can display 2.62 million colors, with a color saturation of 60% (NTSC). The backlighting employs 4 strings of WLED light sources that emit light from the side, with a lifespan of 15,000 hours and an LED driver included. The LP156WH4-TL1 uses an LVDS (1 channel, 6-bit) signal interface with a total of 40 pins, connected via terminals, and operates at a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. This model is recommended for use in laptops.
- LP156WH4-TLA1 Category :
- Panel
