B156HAN02.1 15.6 inch FHD AHVA
- Model:
- B156HAN02.1
B156HAN02.1 - Related Model

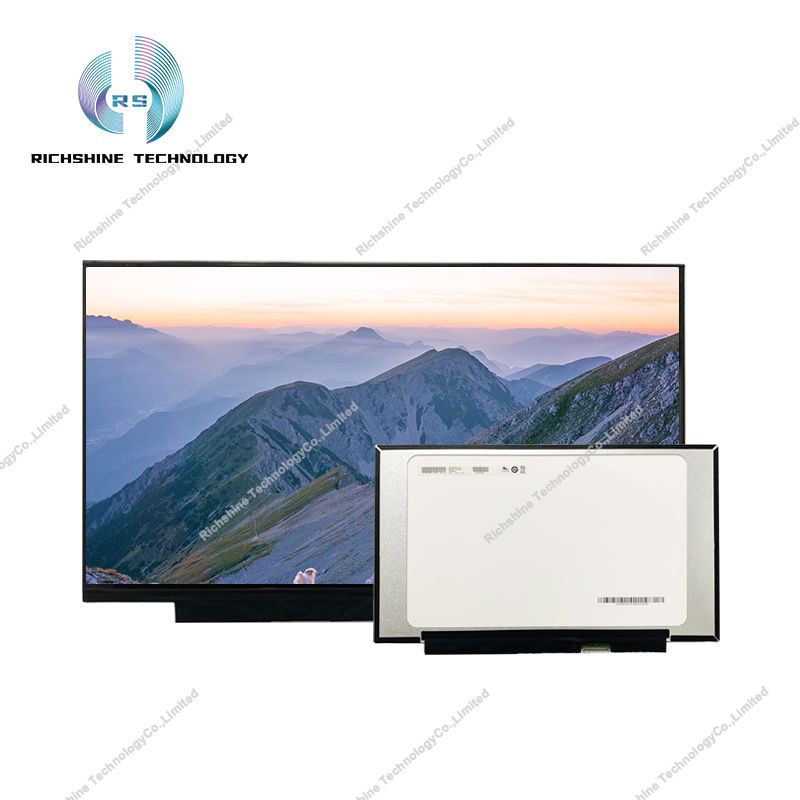

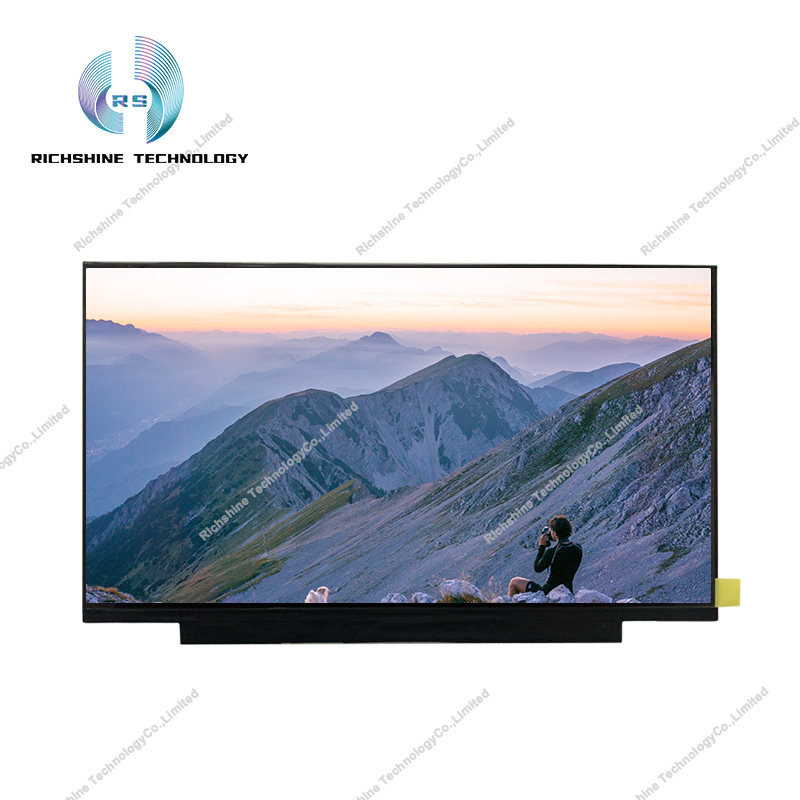

B156HAN02.1_0B is a 15.6-inch LCD module product from AUO featuring a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlighting, and is non-touch. Its typical features include: white LED backlight with an LED driver, inverted terminal layout, eDP1.2. Its operating temperature range is 0 to 50°C, storage temperature range is -20 to 60°C, and it is resistant to vibrations with a vibration tolerance of 1.5G (14.7 m/s²). This model is suitable for use in laptops. The display resolution is 1920 (RGB) × 1080 (FHD), with a 16:9 (width: height) aspect ratio and RGB vertical stripe pixel arrangement. The display area dimensions are 344.16 × 193.59 (width × height) mm, and the physical dimensions are 350.66 (width) × 216.15 (height) × 3.2 (thickness) mm. The display style is thin (PCBA flat, thickness ≤3.2 mm). In terms of backlighting, this product uses WLED-lit side-illuminated light sources. The light source’s lifespan is 15K hours, and it includes an LED driver. B156HAN02.1 HW0B utilizes an eDP (2 lanes) signal interface with a total of 30 pins, employs terminal connections, and has a driving voltage of 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz.
- B156HAN02.1 Category :
- Laptop panel
- Specification
