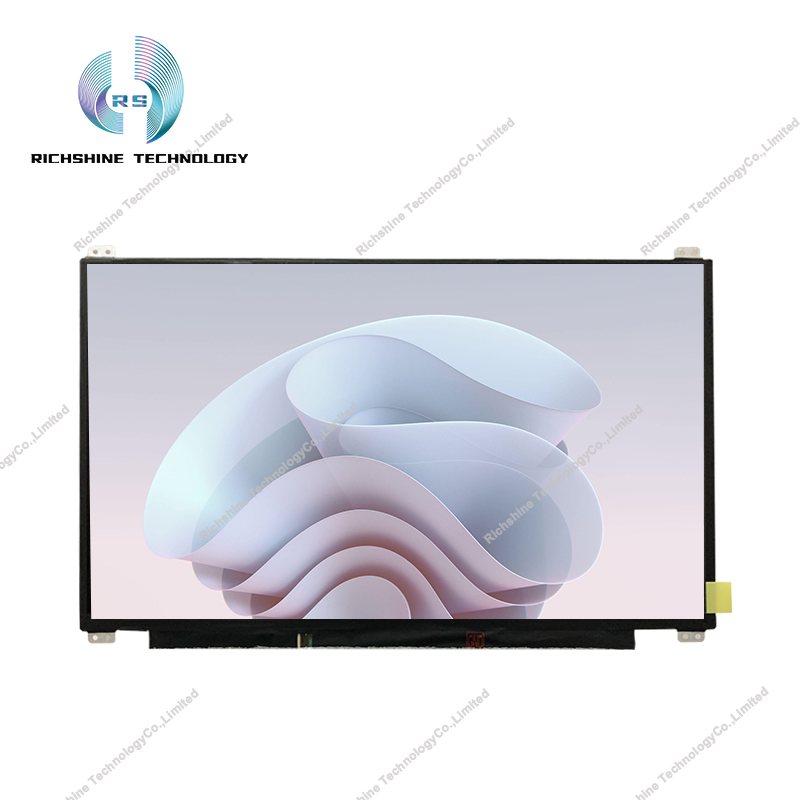

B140XTN02.3 (product code: AUO233C) is a 14.0-inch a-Si TFT-LCD liquid crystal display module product launched by AUO. It features WLED backlighting, including an LED driver for backlighting, and is non-touch. This product operates within a temperature range of 0 to 50°C for operation and -20 to 60°C for storage. Its typical characteristics include white light LED backlighting, an LED driver, reverse-mounted terminals, a mirror-finished surface, Lenovo P/N 0C15189, FRU 04W4446. It is used in laptops. As a TN, full-white display, transmissive LCD module product, B140XTN02 .3 can provide a display brightness of 200 cd/m² and a transmittance contrast ratio of 500:1, with a viewing angle of 45/45/15/35 (Typ.) (CR ≥ 10) (left/right/top/bottom). The optimal viewing angle is 6 o’clock. Its response time is 8 (Typ.) (Tr+Td) ms. Due to the use of 6-bit gray-scale signals per pixel, this product can display 262K colors, with a color saturation of 45% (NTSC). The backlight for this product uses WLED-lit side-illuminated light sources, with a lifespan of 15K hours and an LED driver included. B140XTN0 2.3 employs LVDS (1 channel, 6-bit) signal interface with a total of 40 pins and uses terminal connections. The driving voltage for the screen is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
